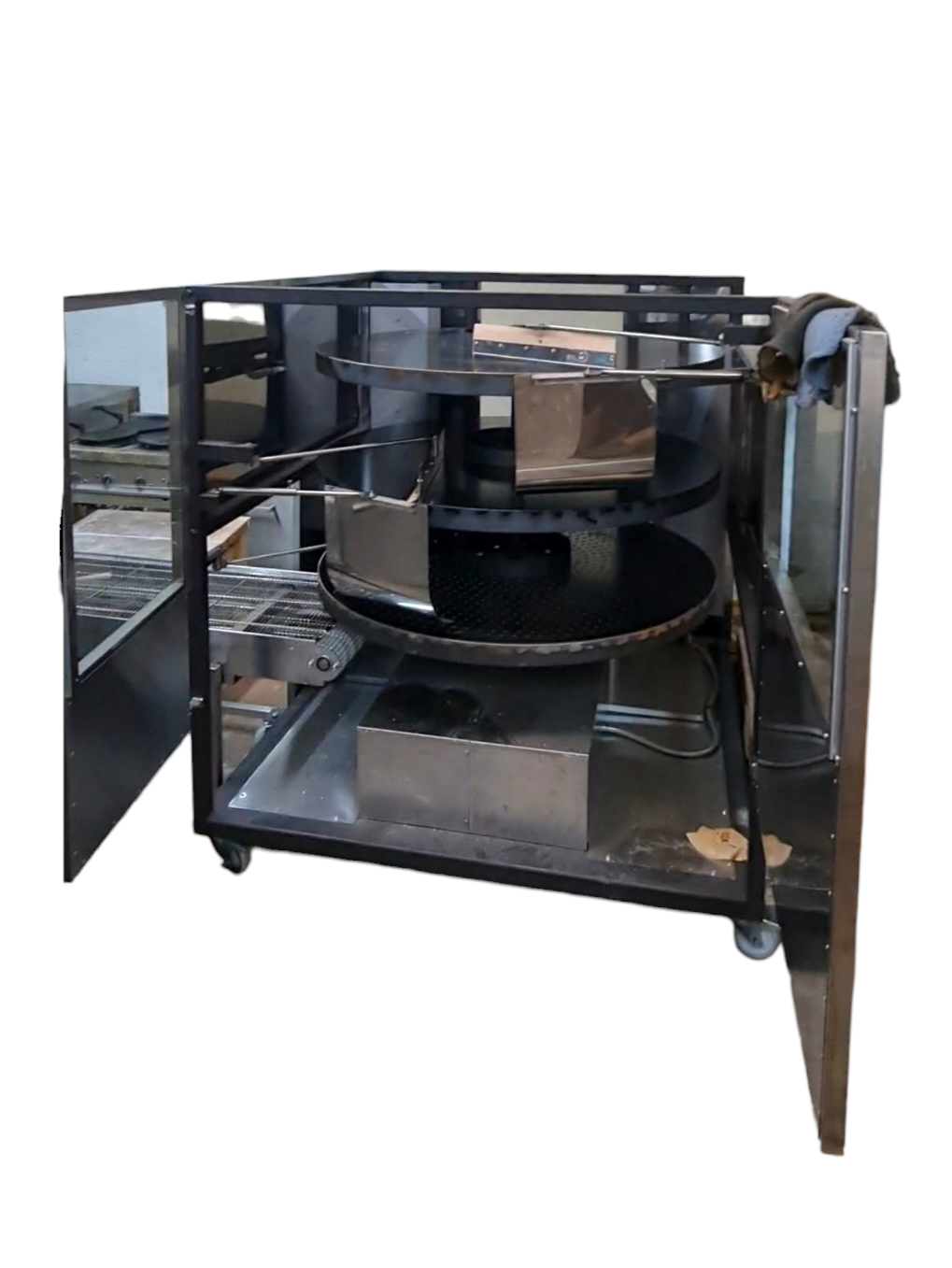

Automatic Chapati Machine – 3 Tier Gas Disc oven 700 pcs/Hr

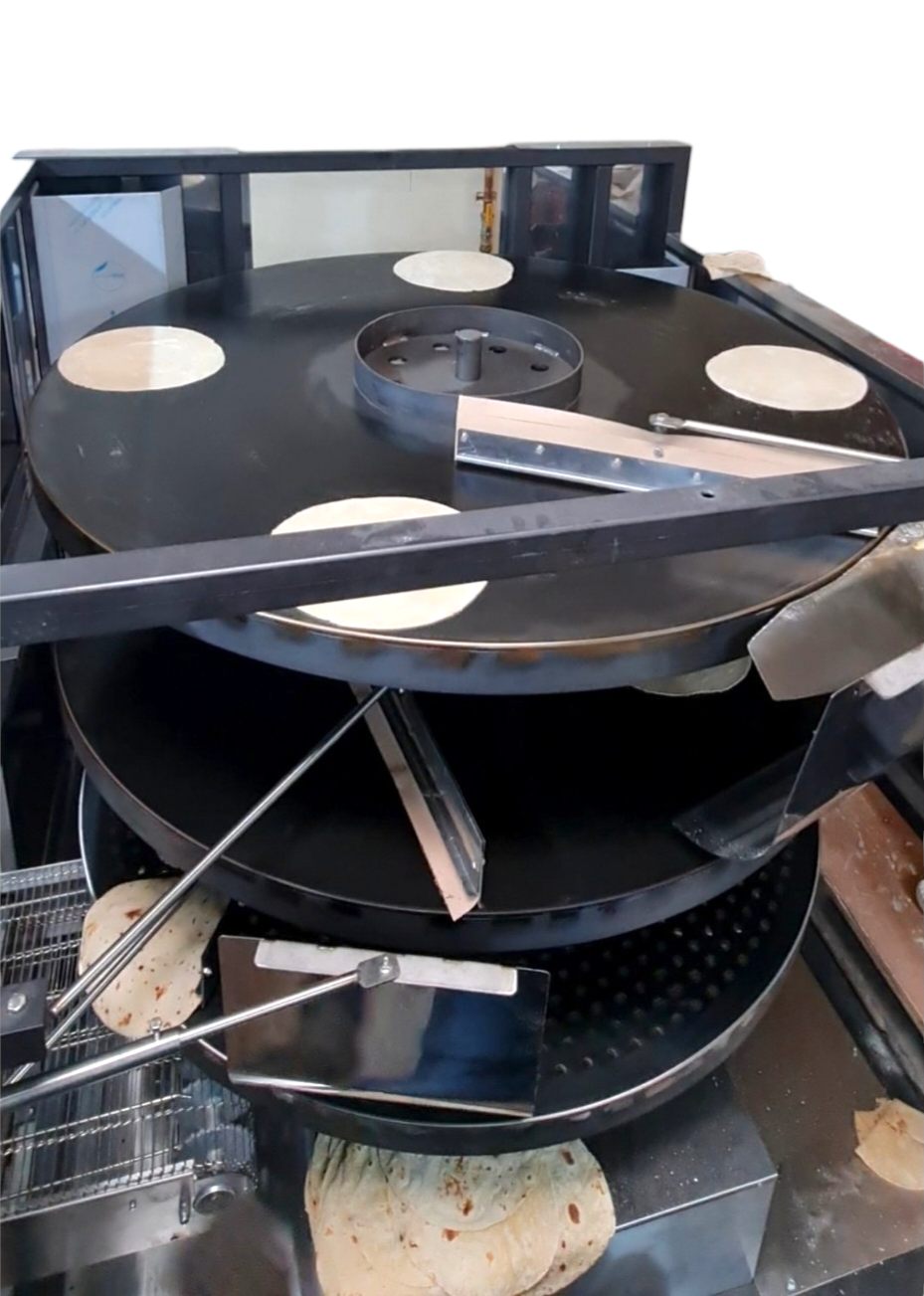

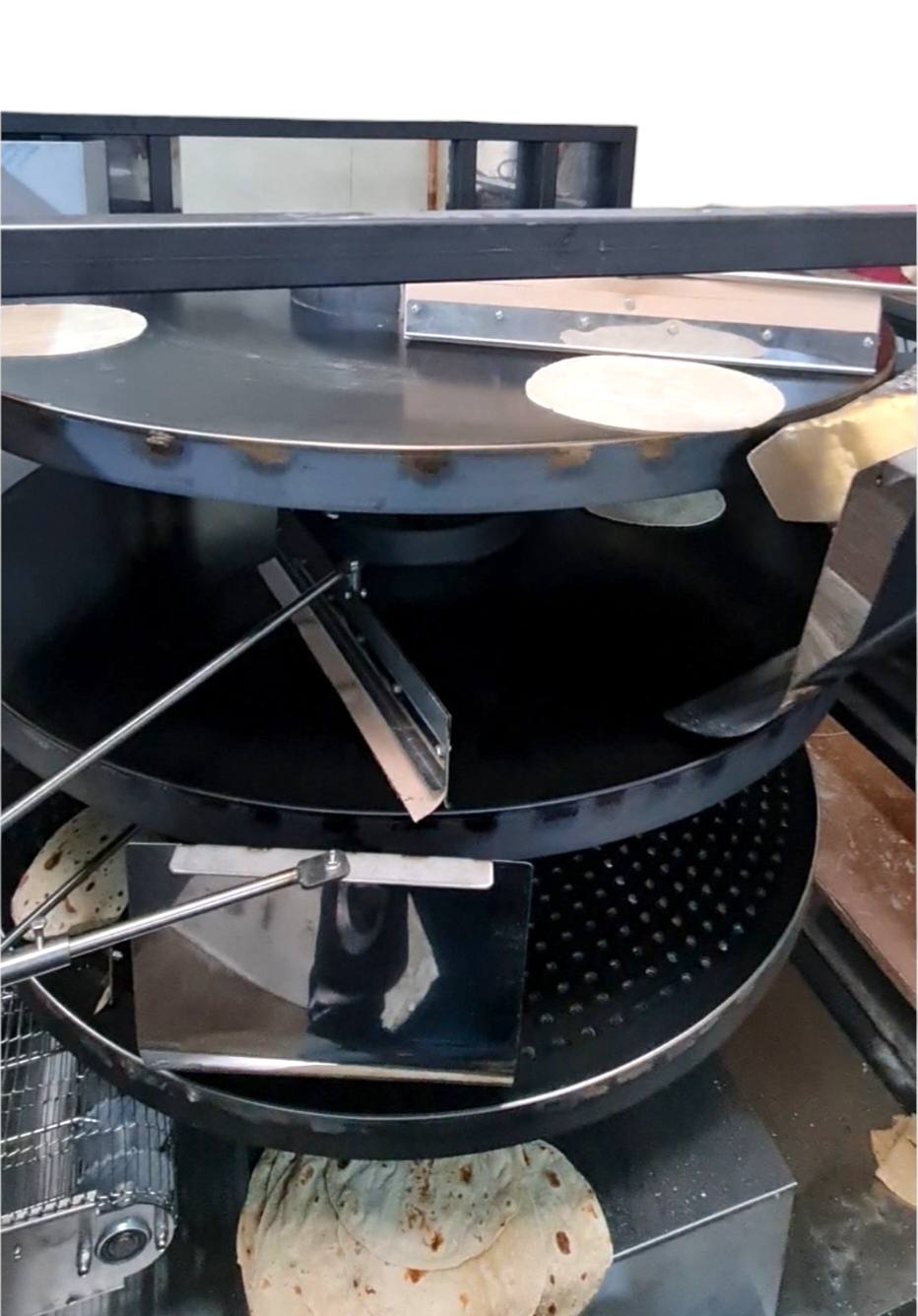

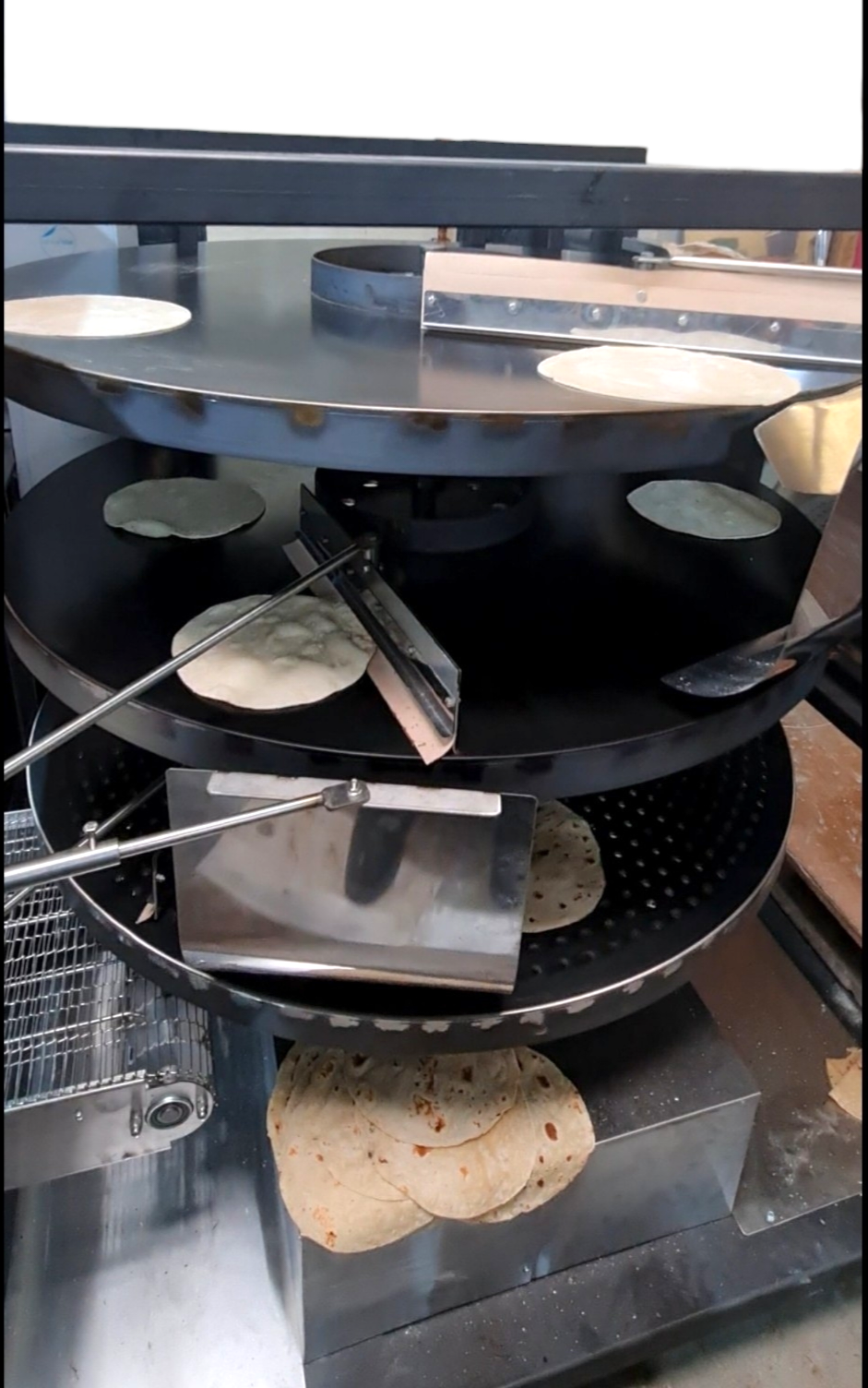

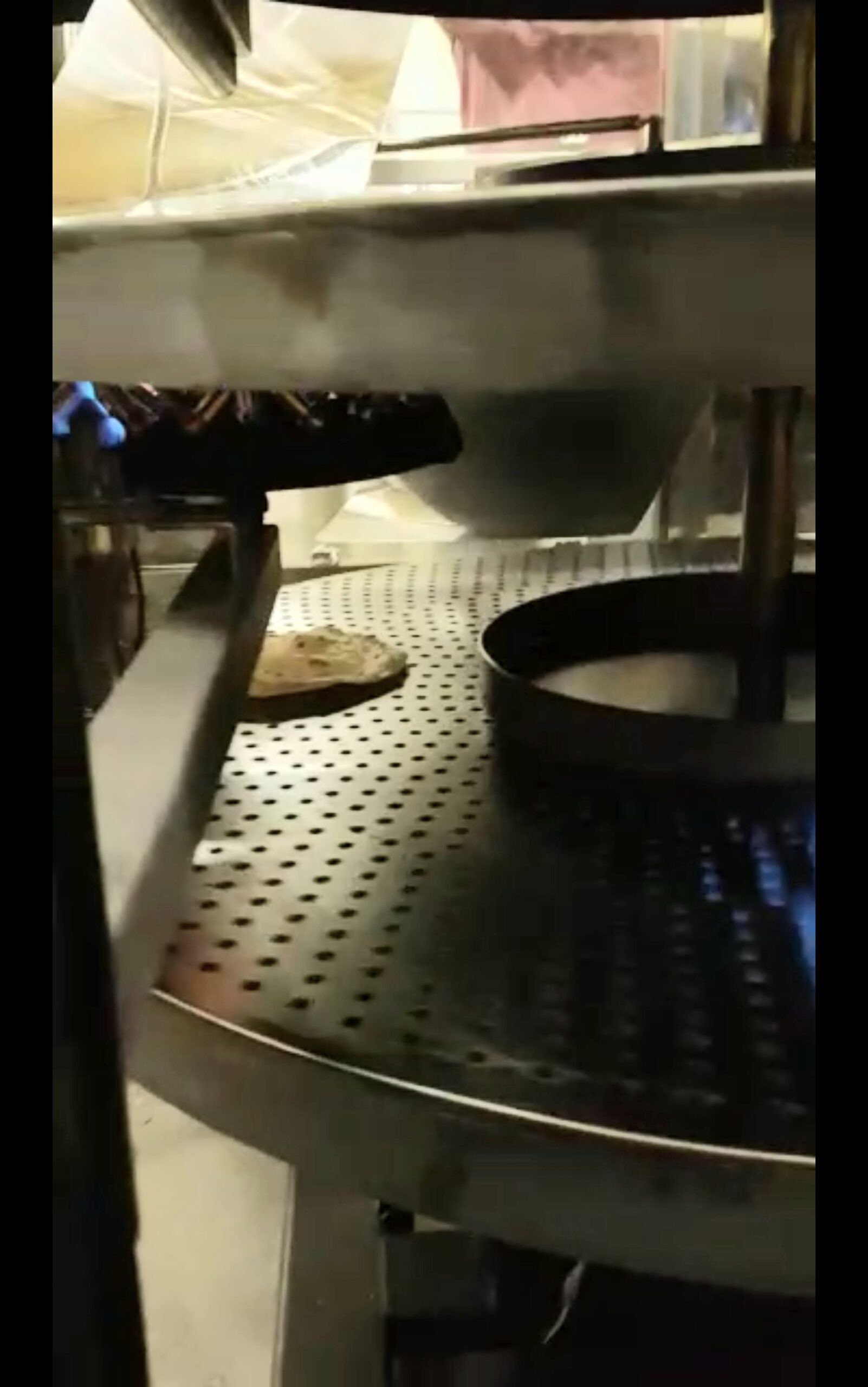

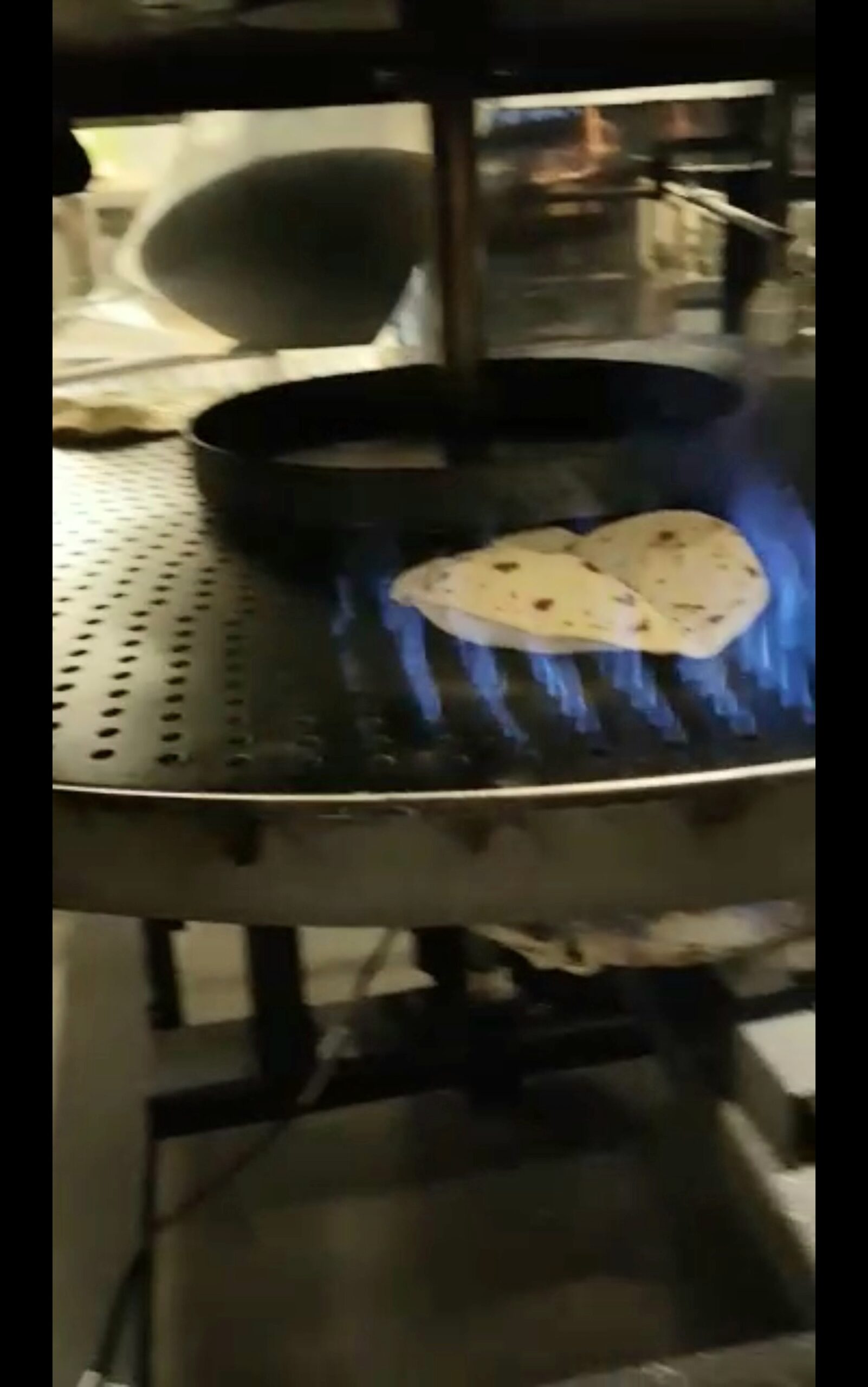

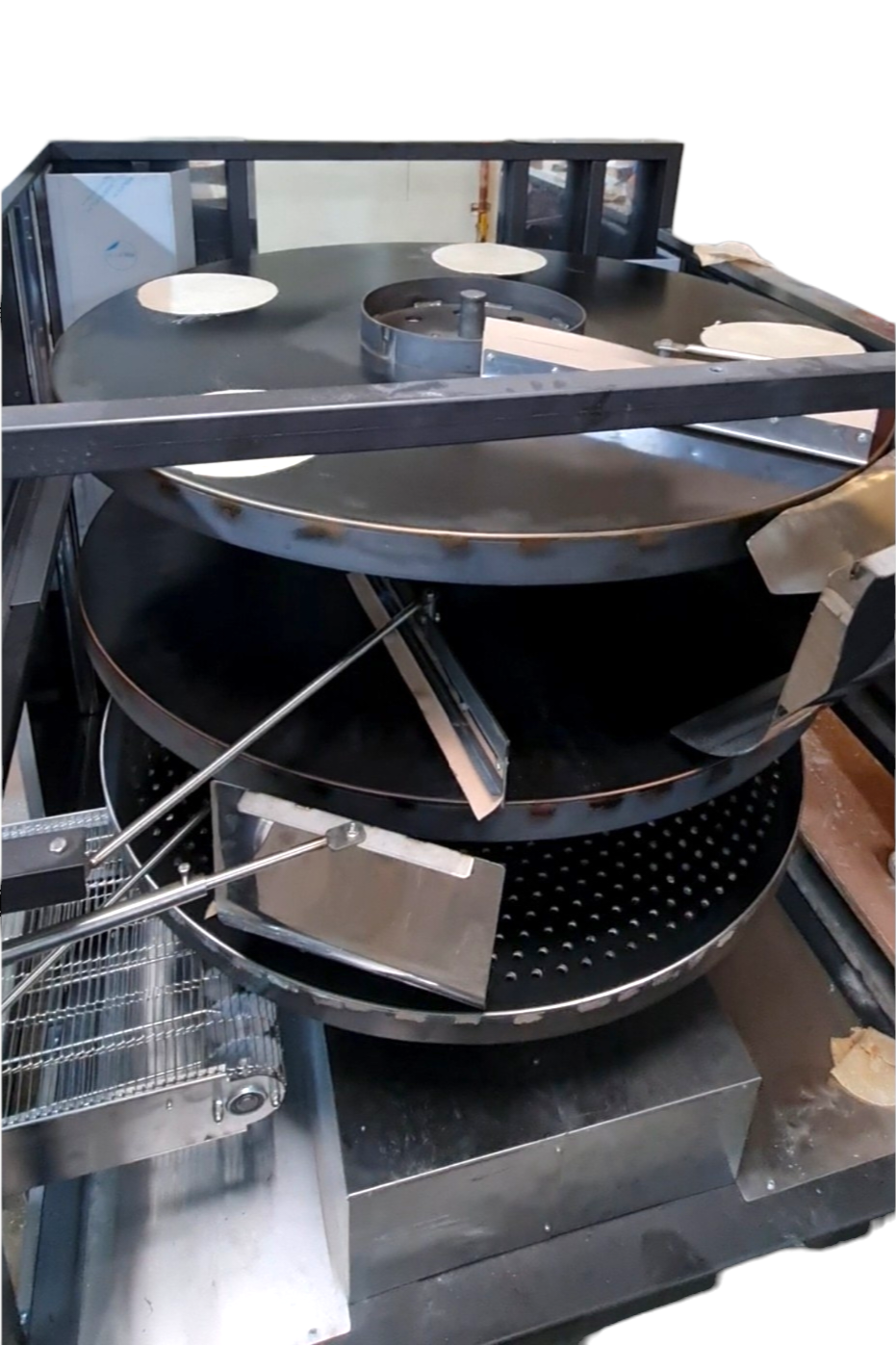

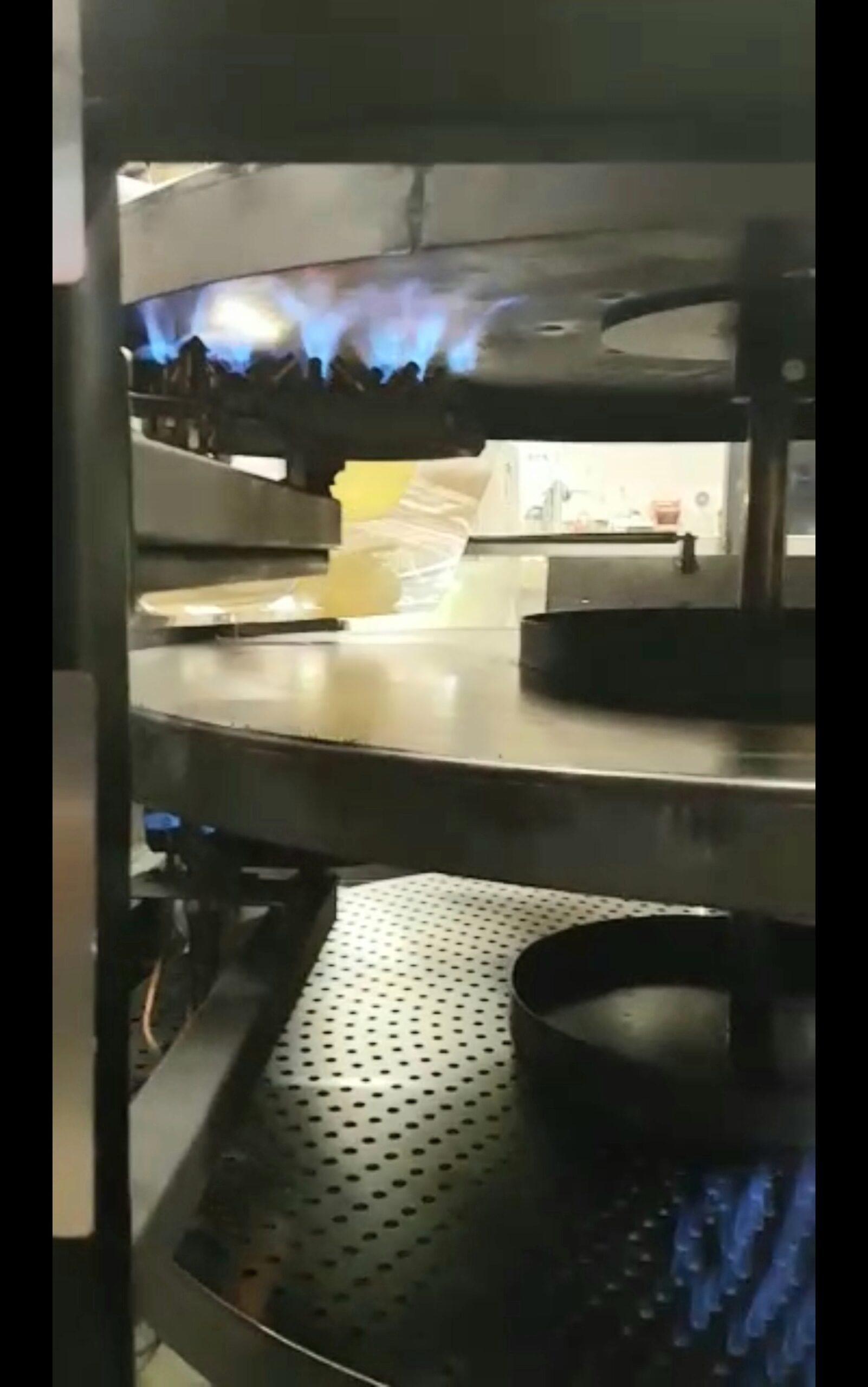

Rotoquip’s automatic 3 tier chapati machine is designed to increase productivity, whilst keeping the footprint to minimum. By using 3 tier discs and 6 x 32 jet burners, this machine can produce up to 700 pieces of chapatis an hour. Simply place the flattened chapatis on to the disc by hand or by using our made to measure conveyor loading system. The chapatis turn on the disc as they gently cook from one side. At the end of the rotation, the half cooked chapatis roll over as they flip on to the middle disc automatically. The chapatis then slide down to the secondary level; where the alternate side gently cooks. Finally declining to the 3rd disc, where the fully cooked chapatis travel on top of open flame burners. This final blaze causes the chapatis to expand in to it’s final shape and ready for packaging. The chapatis will automatically drop at the end of this rotation in to a box or conveyor cooling system which can be custom made to size and specifications.
This Automatic Chapati Machine takes less space compared to traditional conveyor systems, needs less maintenance, leaves no belt marks and consumes less energy. This machine can function on bottle or natural gas on 230v or 110v.
- Capacity - 700 pcs / hr
- 90W Variable motor with controller
- 6 x 32 jet flame burners
- Auto igniting burners with safety and pilot
- Stainless steel covers
- 2x 8mm thick flat carbon steel discs
- 1x 8mm thick perforated carbon steel disc
- 180KW / 614185 BTU
- Input power - 240V / 110V single phase
- Input gas - NG 20mbar / LPG 37mbar
- Pipe entry - 2 x 3/4” BSP
- W - 300 Kg
- Product Dimensions - 1500W x 1500D x 1350H mm
